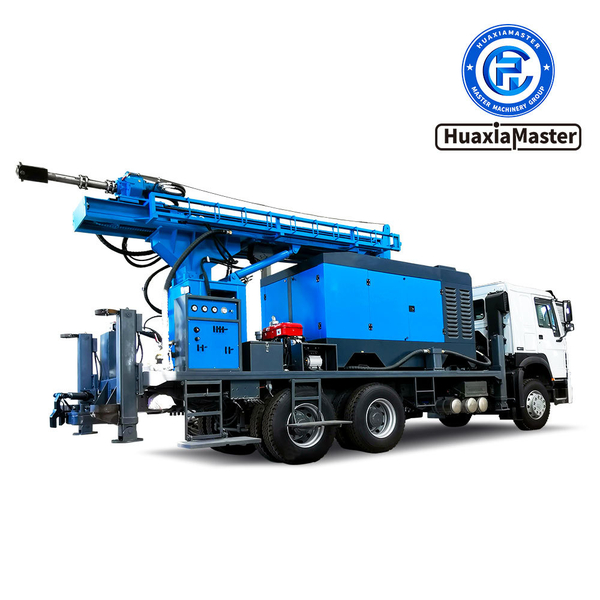

CJC Series Truck-mounted Pneumatic Water Well Drilling Rig 1 в Актюбинске

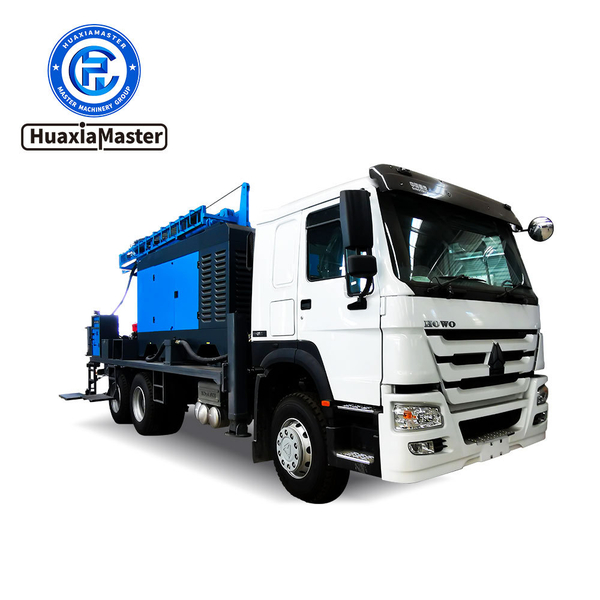

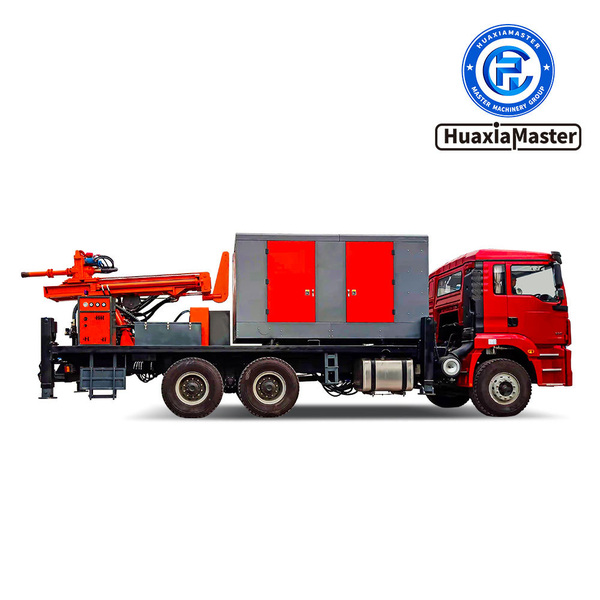

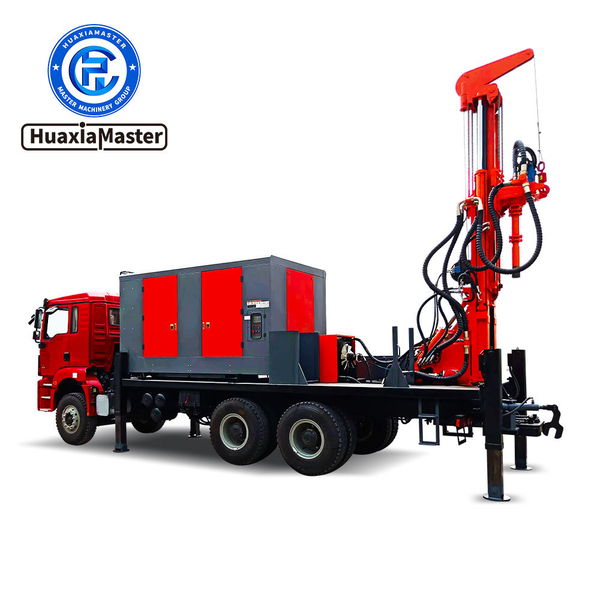

1、Introduction of CJC Series Truck-mounted Pneumatic Water Well Drilling Rig
CJC truck mounted pneumatic water well drilling rig is a kind of pneumatic water well drilling rig jointly developed by HUAXIAMASTER GROUP and Jining Master Machinery Research Institute. It is mainly used for drilling in Hilly and mountainous areas with many rocks. It has the advantages of large diameter, deep drilling, fast footage, flexible movement and high efficiency. It has been widely used in industrial and civil drilling, geothermal drilling and environmental monitoring drilling Well and other occasions.
2、Features Of CJC Series Truck-mounted Pneumatic Water Well Drilling Rig
2.1 Using the principle of pneumatic impact, the drilling footage is fast and the drilling efficiency is high.
2.2 It adopts truck chassis, reasonable and compact layout and easy operation.
2.3 Equipped with hydraulic outrigger, it is used for leveling the drilling rig and maintaining the stability of the fuselage.
2.4 The main engine is equipped with high-power diesel engine, which has strong power and can meet the needs of work
2.5 Equipped with hydraulic take-off and landing composite boom to save space and provide strong lifting force for deep hole operation.
2.6 The drilling rig is equipped with hydraulic feeding system, dual hydraulic motor power head, chain drive and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
2.7 The configuration of hydraulic wrench, can quickly disassemble the drill pipe, saving time and effort.
2.8 The operation handle is centralized, the layout is reasonable, safe and feasible
2.9 Excellent workmanship, durable and low maintenance cost.
3、Parameters of CJC Series Truck-mounted Pneumatic Water Well Drilling Rig
Model CJC-300 CJC-350 CJC-450 CJC-500 CJC-600 CJC-700
Borehole diameter 140-325mm 140-325mm 140-350mm 140-350mm 140-350mm 140-400mm
Drilling depth 300m 350m 450m 500m 600m 700m
Drill pipe diameter 76/89/102mm 89/102mm 89/102/108mm 102/108/114m
